jenkins clusters install with docker-compose

[TOC]

# 概述
系统：centos 7.x
基础安装：docker、docker-compose
jenkins架构：一主三从
jenkins主从中需要的命令均通过挂载宿主机上的实现，如java、python、node等，均通过编译或二进制安装方式。

# 编译安装命令
```
# 注意 --enable-optimizations 可能会报错，如果有就去掉
$ ./configure --prefix=/usr/local/python3 --enable-optimizations
$ make
$ make install
```

## master docker-compose.yaml
```yaml
version: '3.5'

services:
  jenkins-master:
#    image: jenkinsci/blueocean
    image: reg.xxx.xxx/jenkins/jenkinsci-blueocean-1.25.0
    container_name: jenkins-master
    privileged: true
    ports:
      - 8080:8080
      - 50000:50000
    restart: always
    volumes:
      - /home/jenkins/data:/var/jenkins_home
      - /usr/local/apache-maven-3.8.3:/usr/local/maven-3.8.3
      - /usr/local/jdk1.8.0_202:/usr/local/jdk1.8.0_202
      - /usr/local/python3:/usr/local/python3
      - /usr/local/node-v16.6.0-linux-x64:/usr/local/node-v16.6.0-linux-x64
      - /var/run/docker.sock:/var/run/docker.sock
#      - /usr/bin/docker:/usr/bin/docker
    environment:
      - TZ=Asia/Shanghai
      - PATH=/opt/java/openjdk/bin:/usr/local/sbin:/usr/local/bin:/usr/sbin:/usr/bin:/sbin:/bin:/usr/local/maven-3.8.3/bin:/bin:/usr/local/python3/bin:/usr/local/node-v16.6.0-linux-x64/bin
#      - PATH=/usr/local/sbin:/usr/local/bin:/usr/sbin:/usr/bin:/sbin:/bin:/usr/local/maven-3.8.3/bin:/usr/local/jdk1.8.0_202/bin:/usr/local/python3/bin:/usr/local/node-v16.6.0-linux-x64/bin
```

## slave docker-compose.yaml
```
version: '3.5'

services:
  jenkins-slave-agent1:
    container_name: jenkins-slave-agent1
#    image: bolingcavalry/openjdk-with-sshpass:8u232
    image: reg.xxx.xxx/jenkins/openjdk-with-sshpass:1.8
    privileged: true
    command:
        java -jar /usr/local/jenkins/agent.jar -jnlpUrl http://jenkins.maizuo.com/computer/agent1/jenkins-agent.jnlp -secret 9cf71dd0b91ecbc7203fafe0bfbbefd947898ecdca51ab7f0332cf90e93a4840 -workDir "/home/jenkins/slave_data/agent1"
    restart: always
    volumes:
      - /home/jenkins/slave_data/agent1:/usr/local/jenkins
      - /var/run/docker.sock:/var/run/docker.sock
      - /usr/local/apache-maven-3.8.3:/usr/local/maven-3.8.3
      - /usr/local/jdk1.8.0_202:/usr/local/jdk1.8.0_202
      - /usr/local/python3:/usr/local/python3
      - /usr/local/node-v16.6.0-linux-x64:/usr/local/node-v16.6.0-linux-x64
    environment:
      - TZ=Asia/Shanghai
      - PATH=/usr/local/sbin:/usr/local/bin:/usr/sbin:/usr/bin:/sbin:/bin:/usr/local/maven-3.8.3/bin:/usr/local/jdk1.8.0_202/bin:/usr/local/python3/bin:/usr/local/node-v16.6.0-linux-x64/bin

jenkins-slave-agent2:
    container_name: jenkins-slave-agent2
#    image: bolingcavalry/openjdk-with-sshpass:8u232
    image: reg.xxx.xxx/jenkins/openjdk-with-sshpass:1.8
    privileged: true
    command:
        java -jar /usr/local/jenkins/agent.jar -jnlpUrl http://jenkins.maizuo.com/computer/agent2/jenkins-agent.jnlp -secret b7319a39e4758c3b5a1003bdf8e49c40986d78d9789b10f63a3aa11c348407eb -workDir "/home/jenkins/slave_data/agent2"
    restart: always
    volumes:
      - /home/jenkins/slave_data/agent2:/usr/local/jenkins
      - /var/run/docker.sock:/var/run/docker.sock
      - /usr/local/apache-maven-3.8.3:/usr/local/maven-3.8.3
      - /usr/local/jdk1.8.0_202:/usr/local/jdk1.8.0_202
      - /usr/local/python3:/usr/local/python3
      - /usr/local/node-v16.6.0-linux-x64:/usr/local/node-v16.6.0-linux-x64
    environment:
      - TZ=Asia/Shanghai
      - PATH=/usr/local/sbin:/usr/local/bin:/usr/sbin:/usr/bin:/sbin:/bin:/usr/local/maven-3.8.3/bin:/usr/local/jdk1.8.0_202/bin:/usr/local/python3/bin:/usr/local/node-v16.6.0-linux-x64/bin

jenkins-slave-agent3:
    container_name: jenkins-slave-agent3
#    image: bolingcavalry/openjdk-with-sshpass:8u232
    image: reg.xxx.xxx/jenkins/openjdk-with-sshpass:1.8
    privileged: true
    command:
        java -jar /usr/local/jenkins/agent.jar -jnlpUrl http://jenkins.maizuo.com/computer/agent3/jenkins-agent.jnlp -secret e9f255f4f3093991ab27fa66ca0a23951c480cbde1e30140608a83429d1f3f1b -workDir "/home/jenkins/slave_data/agent3"
    restart: always
    volumes:
      - /home/jenkins/slave_data/agent3:/usr/local/jenkins
      - /var/run/docker.sock:/var/run/docker.sock
      - /usr/local/apache-maven-3.8.3:/usr/local/maven-3.8.3
      - /usr/local/jdk1.8.0_202:/usr/local/jdk1.8.0_202
      - /usr/local/python3:/usr/local/python3
      - /usr/local/node-v16.6.0-linux-x64:/usr/local/node-v16.6.0-linux-x64
    environment:
      - TZ=Asia/Shanghai
      - PATH=/usr/local/sbin:/usr/local/bin:/usr/sbin:/usr/bin:/sbin:/bin:/usr/local/maven-3.8.3/bin:/usr/local/jdk1.8.0_202/bin:/usr/local/python3/bin:/usr/local/node-v16.6.0-linux-x64/bin
```

# 相关包下载地址与方法
docker-compose安装：
```
curl -L "https://github.com/docker/compose/releases/download/1.29.2/docker-compose-$(uname -s)-$(uname -m)" -o /usr/local/bin/docker-compose
```

node和npm二进制包：https://nodejs.org/zh-cn/download/releases
python源码包：https://www.python.org/ftp/python
java源码包：https://www.oracle.com/java/technologies/javase/javase8-archive-downloads.html#license-lightbox
maven源码包：https://dlcdn.apache.org/maven/maven-3/3.8.3/binaries/apache-maven-3.8.3-bin.tar.gz

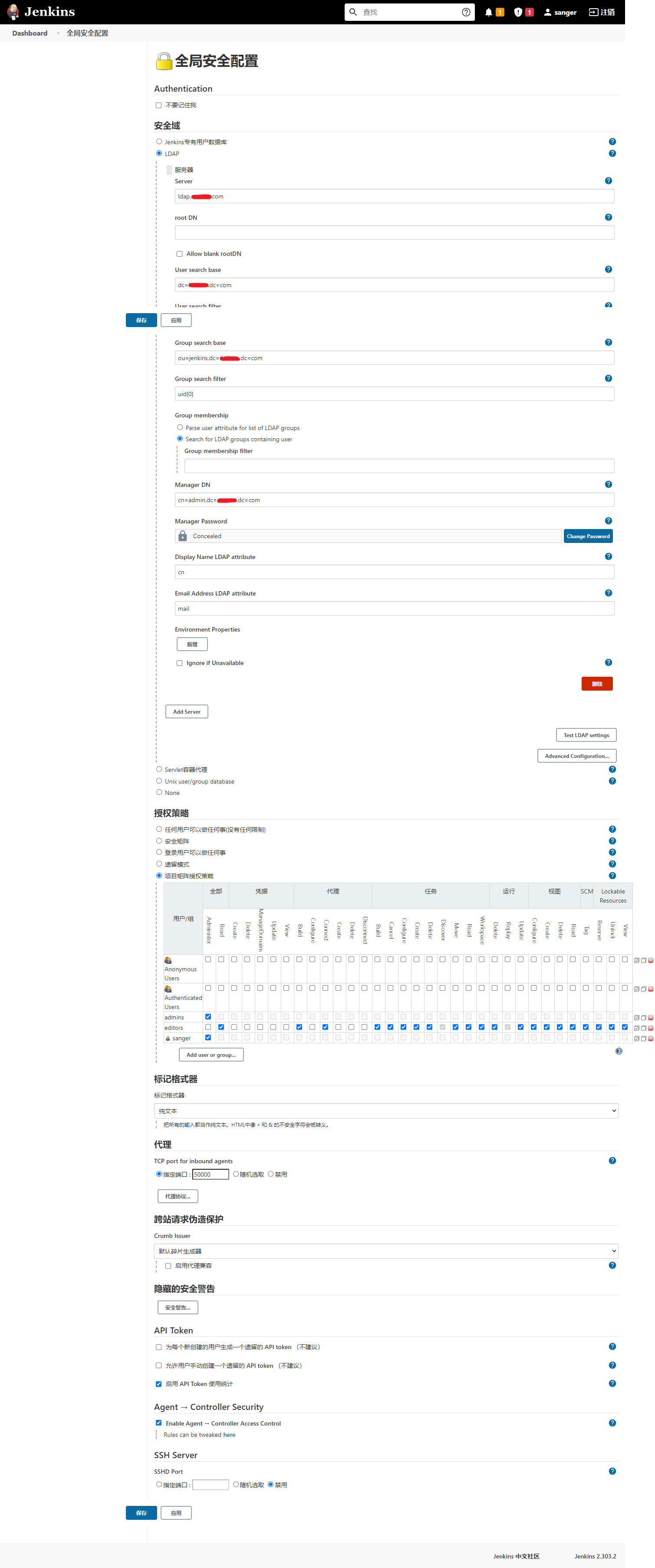

# jenkins 对接 ldap配置
![title](/api/file/getImage?fileId=61960ec22f0f82000b000100)
